All Dwg > Climate Conditioning > Heating block diagram

Fully editable dwg, you can change all the drawings in the project together with everything else.

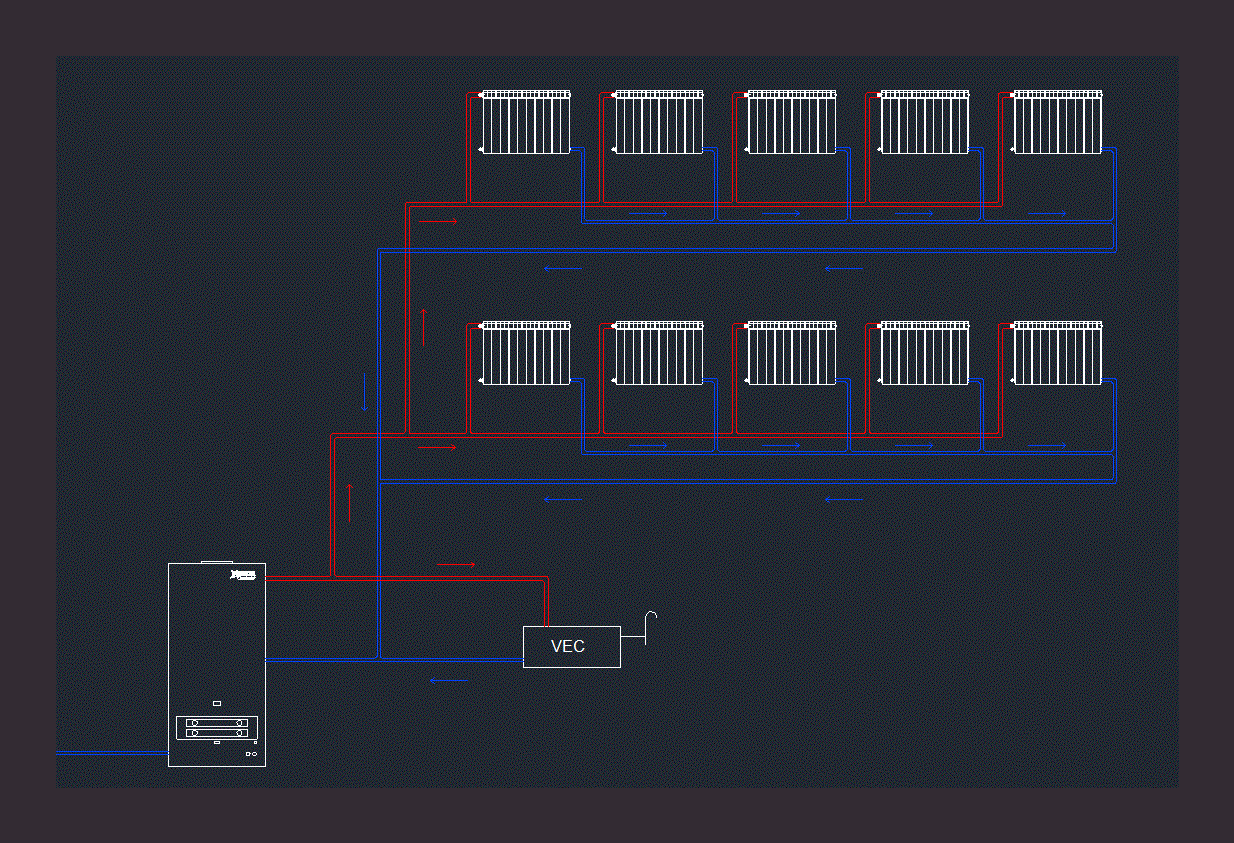

Two storey five emitters per plant boiler circulation piping system rotates inversely to the scheme and tight with the Heating


This dwg file is compatible with all versions of Autocad program.
